Exploring the Power of Ultrasonic Sensors: A Brief Introduction

An ultrasonic sensor is a device that uses high-frequency sound waves (ultrasound) to detect objects, measure distances, or detect changes in the environment. It emits sound waves and measures the time it takes to bounce off an object and return to the sensor.

The HC-SR04 is a popular ultrasonic sensor due to its simplicity, low cost, and ease of integration with microcontrollers like Arduino and Raspberry Pi. It can measure distances ranging from 2 cm to 4 meters, making it useful for various applications, including obstacle avoidance in robots, distance measurement, and level sensing.

Key Components

The HC-SR04 ultrasonic sensor relies on two key components: a transmitter that emits ultrasonic sound pulses and a receiver that detects the reflected waves, allowing for distance measurement.

Transmitter (Trigger)

This component emits high-frequency sound waves (ultrasonic pulses) into the environment.

Receiver (Echo)

This component receives sound waves (echoes) once they bounce back from an object.

Control Pins

• VCC: Connect to the Arduino’s 5V pin for power.
• GND: Connect to the Arduino’s GND pin.
• Trig: Sends a signal to start the measurement process. Connect to the Arduino digital pin.
• Echo: Receives the reflected sound wave’s pulse. Connect to the Arduino digital pin.

Working Principle

1. Triggering the Sensor

When the Trigger Pin receives a high pulse (typically 10 microseconds), it activates the ultrasonic transmitter to emit a sound wave.

2. Emitting and Reflecting Sound

The ultrasonic transmitter sends out a sound wave at a frequency of 40 kHz, which travels through the air. Meanwhile, the echo pin goes HIGH and starts waiting for the wave to be reflected from an object.

3. Receiving the Echo

If there is no object or reflected pulse, the Echo pin will time out after 38ms and return to the LOW state.

When the sound wave hits an object, it reflects towards the sensor. The echo pin goes LOW as soon as the signal is received. The sensor measures the time it takes for the sound wave to travel to the object and back.

4. Calculating the Distance

By measuring the time delay between the emission and reception of the sound waves, the sensor can calculate the distance to the object using the formula:

$$Distance=\frac{Time\times Speed\;of\;Sound}2$$

The speed of sound in air is approximately 343 meters per second (at 20°C).

Advantages

• Non-contact detection: The ultrasonic sensor uses sound waves, meaning no physical contact is required with the object being measured, which can be beneficial in certain environments.
• Cost-Effective: The ultrasonic sensor is inexpensive, making it a popular choice for hobbyists, DIY projects, and educational purposes.
• Accurate Distance Measurement: It provides fairly accurate measurements (with an error margin of a few centimeters), making it suitable for many applications that require distance sensing.
• Wide Measurement Range: The ultrasonic sensor has a range of 2 cm to 4 meters, which covers many common use cases in robotics, automation, and obstacle detection.
• Low Power Consumption: It consumes very little power when idle, making it efficient for battery-operated projects.

Disadvantages

• Limited Accuracy: While the sensor is generally accurate, it can be prone to errors in certain conditions (e.g., with irregularly shaped objects, soft materials, or highly reflective surfaces).
• Environmental Sensitivity: The sensor’s performance can be affected by environmental factors like temperature, humidity, winds, and air pressure, as these factors influence the speed of sound.
• Narrow Detection Angle: The HC-SR04 ultrasonic sensor has a narrow field of view (about 15 degrees), which means it may not detect objects outside of this range, limiting its usability in some scenarios.
• The HC-SR04 ultrasonic sensor may not work well with highly absorbent materials.

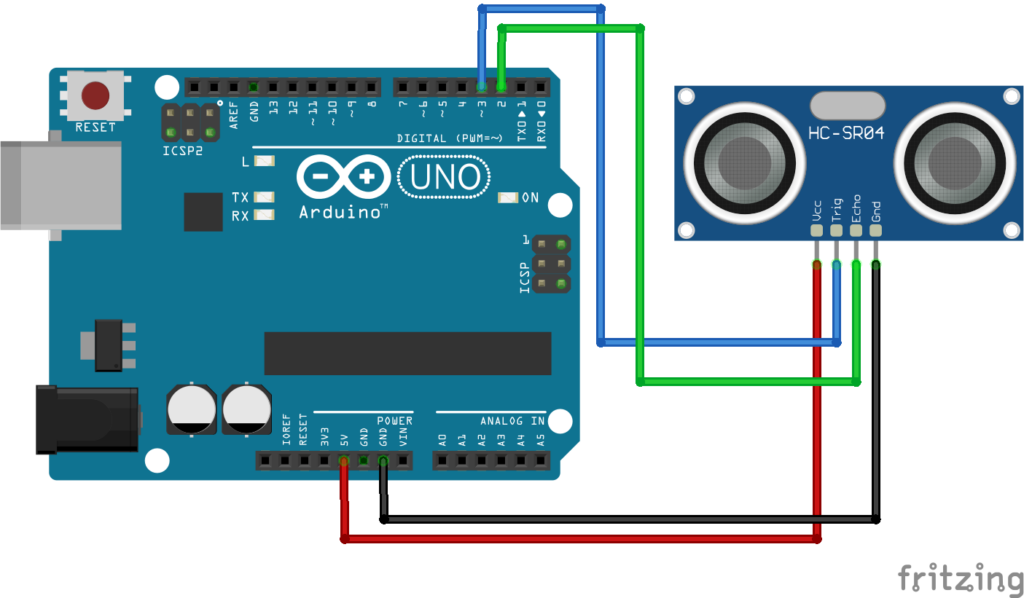

Pin Wiring
